NFC Programming Instruction with NXP Tagwriter

Download NFC TagWriter by NXP (Google Play link https://play.google.com/store/apps/details?id=com.nxp.nfc.tagwriter&hl=en_CA or Apple App Store https://apps.apple.com/us/app/nfc-tagwriter-by-nxp/id1246143221)

Open app and follow the directions below (Android version shown below).

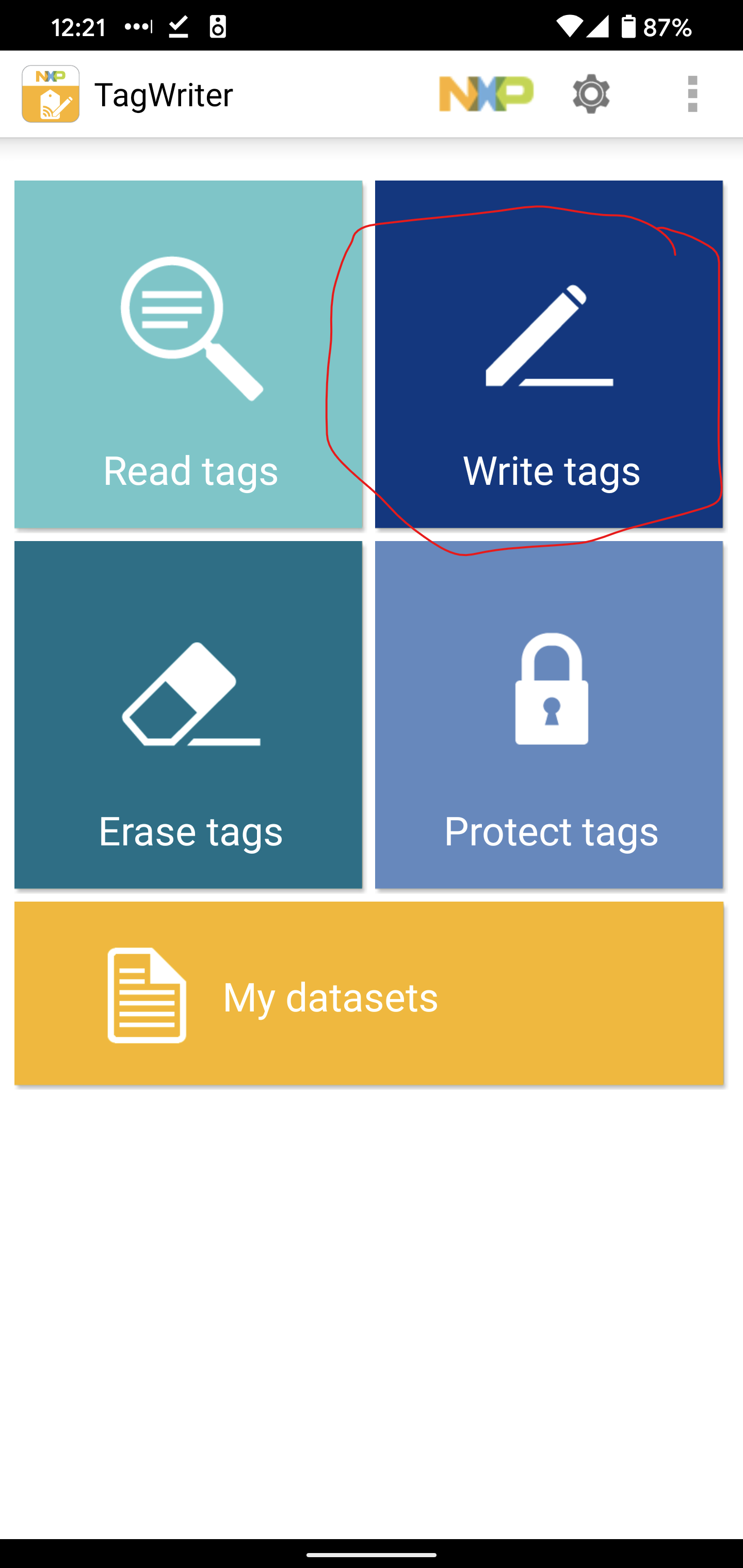

1. Click on WRITE TAGS:

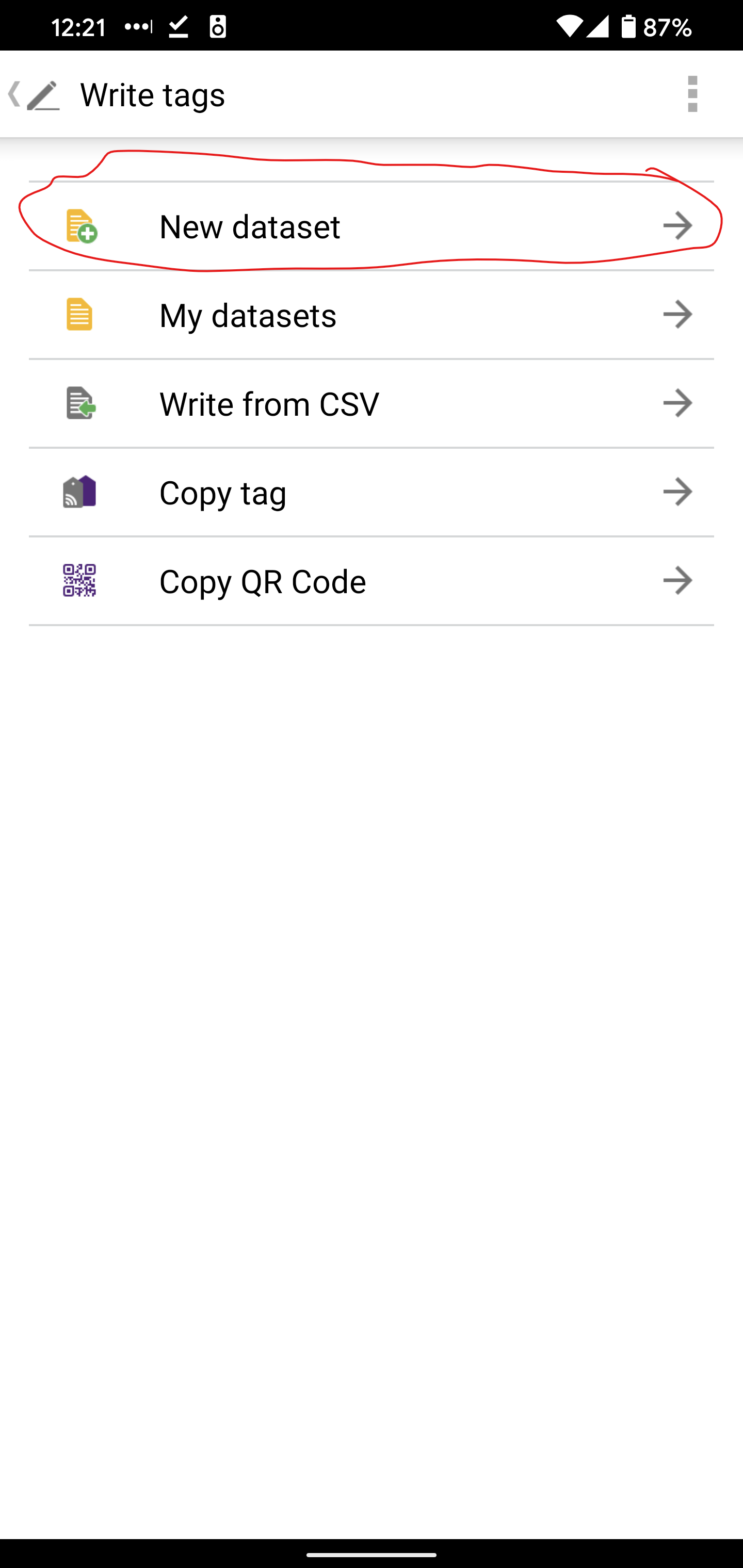

2. Click on NEW DATASET:

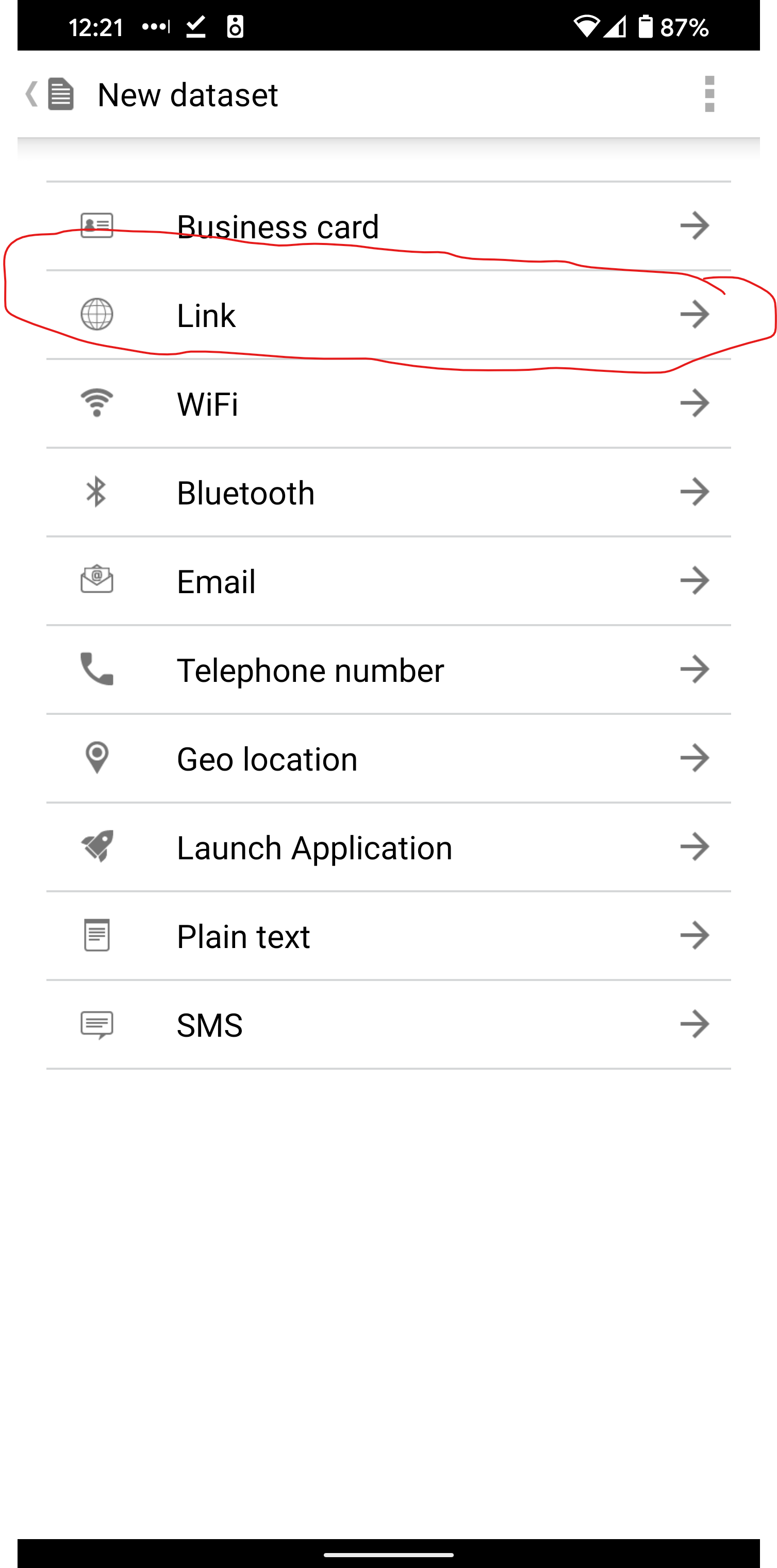

3. Click on LINK:

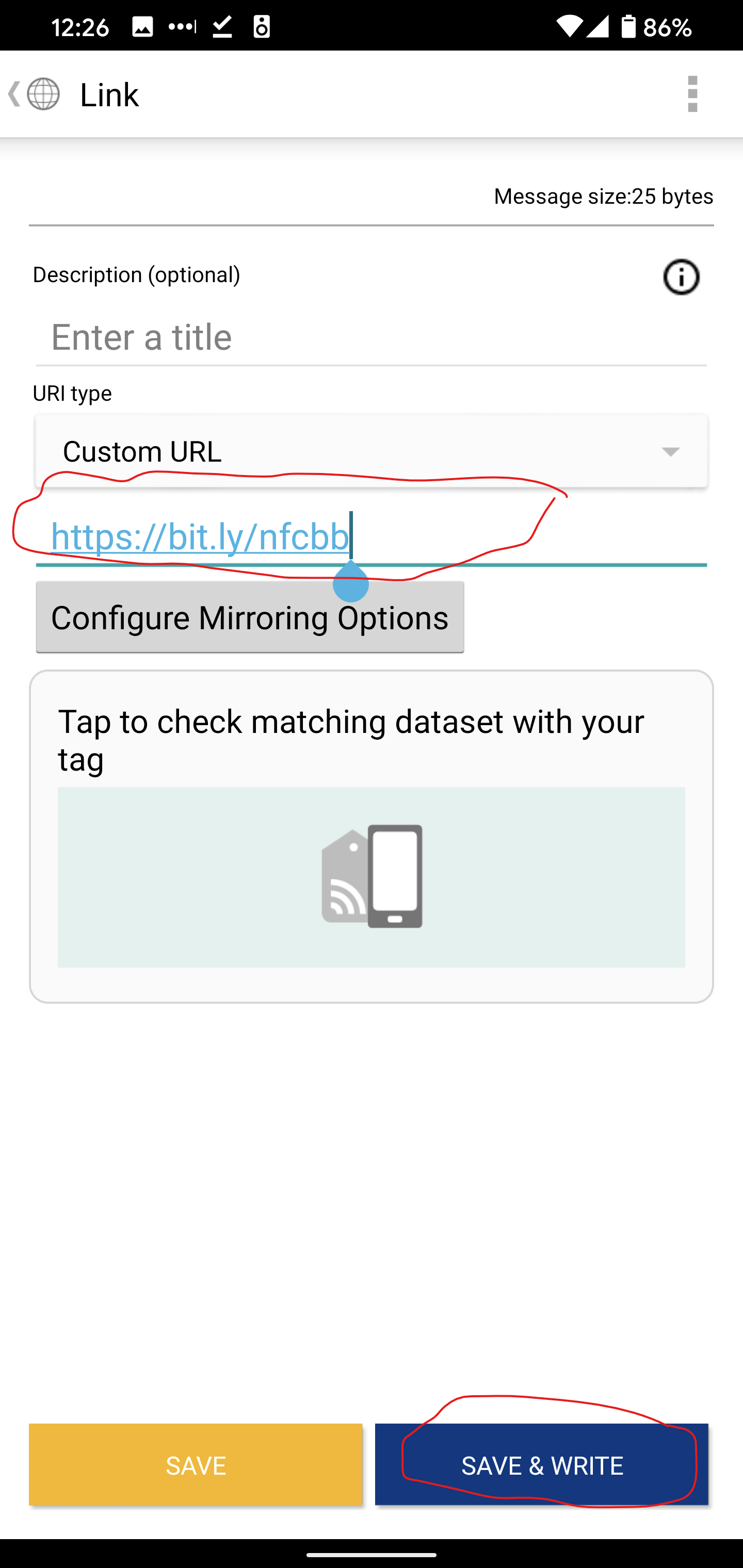

4. Enter URL (in the Blackberry example you can use "https://bit.ly/nfcbb").  When finished click SAVE & WRITE:

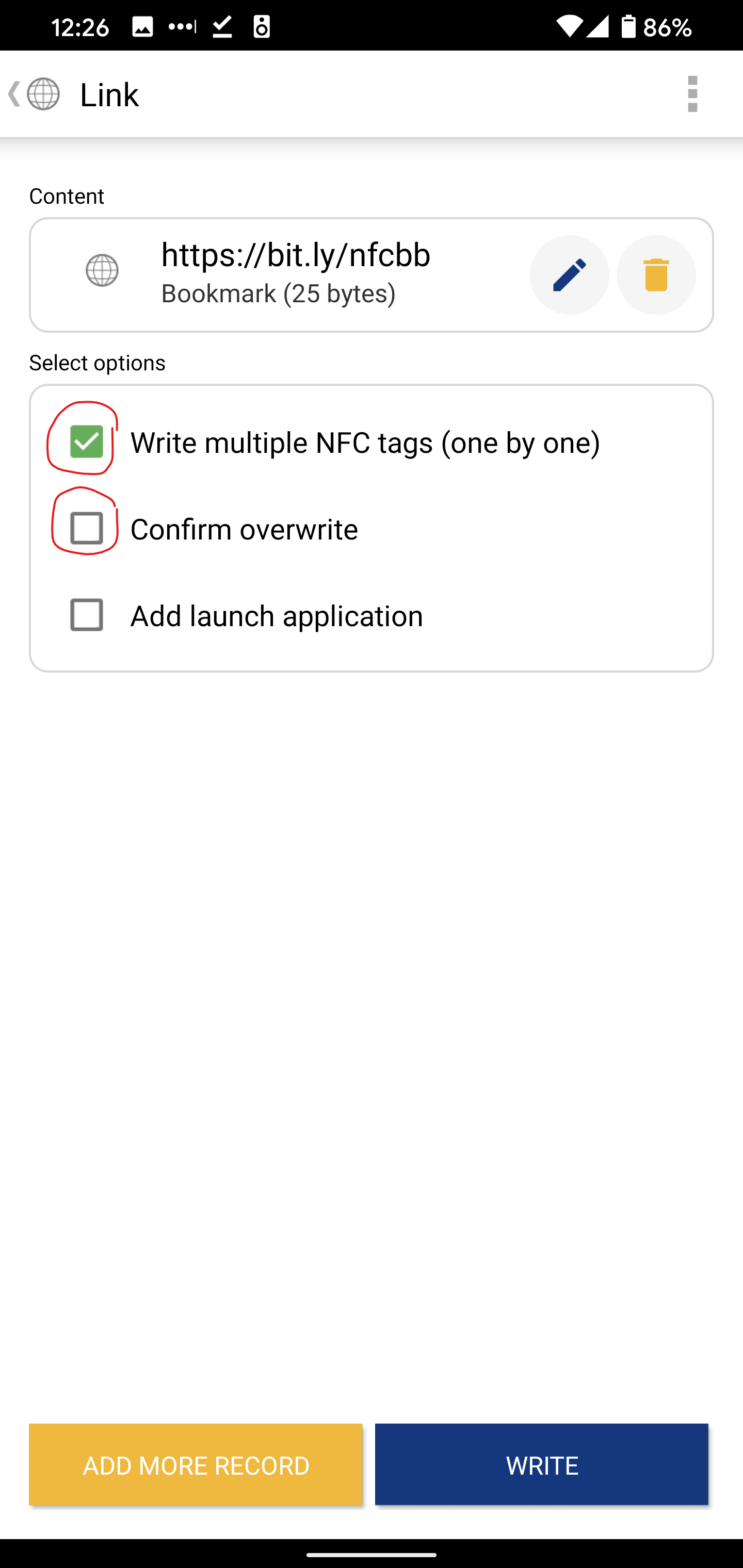

5. Uncheck "Confirm overwrite", and check "Write multiple NFC tags (one by one)"

6. Scan NFC tag (keyfob) to write.
